EDGE-System A6-4 42U 6KW UPS PDU Monitoring
| Introduction | |
|---|---|

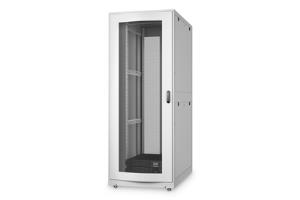

| The DIGITUS® Edge System A6-4 is a full-fledged micro data center. It is suitable for installation in clean and well-ventilated rooms in the IT server environment - The Edge System A6-4 is designed for a maximum installed ICT load of 6 kW - The 42 rack unit server cabinet comes in protection class IP20, dimensions: 600 x 1000 x 2050 mm (WxDxH) - 37 rack units are available for the installation of additional devices - A double converter UPS system with a nominal capacity of 6 kVA safeguards the system against 10 common network errors - One PDU with 16 x C13 and 4 x C19 outputs offer sufficient resources for a variety of applications: all of them can be measured separately, including differential current measurement. - The thermal load is emitted into the room through perforated doors - The integrated monitoring device enables remote monitoring of the most important parameters (temperature, humidity, door contacts). In the Edge System A6-4, the following components are combined to form a homogeneous micro data center. Server cabinet: The standardized 19” server cabinet with a gross height of 42 rack units allows for variable installation of all standardized ICT components and comes in protection class IP20. Access to the inside of the cabinet is secured using a mechanical locking system. Optional accessories such as cable management ensure tidy and clean cable routing inside the cabinet. Main power distributor: The devices installed in the cabinet are supplied with power via a single-phase 32A cable. UPS: The Edge System A6 protects the installed devices against numerous network disruptions thanks to a top-class 6kVA UPS (VFI, Voltage and Frequency Independent). The installed batteries offer protection for roughly 5 minutes, this protection can be extended through optional battery expansions. Cabinet power distribution: One PDU with 16 x C13 and 4 x C19 outputs offer sufficient resources for a variety of applications: all of them can be measured separately, including differential current measurement. Cooling: The thermal load is emitted into the room through perforated doors. Remote monitoring / control: The integrated monitoring device enables remote monitoring of the most important parameters (temperature, humidity, door contacts). Accessories: A wide range of accessories are available to choose from for the DIGITUS® Edge Solution as optional extensions. Integration: Depending on the customer’s requirements, the DIGITUS® Edge System A6-4 is available for delivery as a “bundle” (components packaged separately), partially installed or as a fully installed, configured and tested system. |
