Optical Transceiver 100gbe Qsfp28 Mpo 1310nm
| Introduction | |
|---|---|

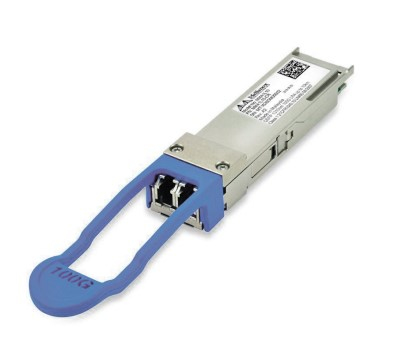

| Mellanox MMA1L10-CR Optical Transceiver 100GbE QSFP28 LC-LC 1310nm LR4 up to 10km Mellanox 100Gb/s transceiver module is designed for use in 100 Gigabit Ethernet (GbE) links on up to 10km of single mode fiber. It is compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4. Digital diagnostic functions are available via the I2 C interface, as specified by the QSFP28 MSA. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side the module de-multiplexes a 100Gb/s optical LAN WDM input into 4 optical signals and then converts them to 4 output channels of electrical data. Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability. |
No options for this product
