Transceiver 40gbe Qsfp+mpo 850nm 150m Ddmi
| Introduction | |
|---|---|

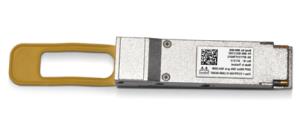

| Mellanox MMA1B00-B150D Mellanox Transceiver 40GbE QSFP+ MPO 850nm SR4 up to 150m DDMI Mellanox MMA1B00-B150D is a 4-channel, pluggable, QSFP+, VCSEL-based (Vertical Cavity Surface Emitting Laser) optical transceiver designed for up to 150m reach in 40Gb/s Ethernet networks operating at 4x10.3125Gb/s. This transceiver incorporates Mellanox integrated circuit technology, which combines high performance at low power. The transceiver operates over parallel multi-mode fiber (MMF), using a nominal wavelength of 850nm, and is SFF-8436 compliant. The MMA1B00-B150D transceiver has a standard QSFP+ connector on the electrical side towards the host system for power, control/monitoring and high-speed data. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel MMF cable via a standard MPO connector. The transceiver can operate 10.3125Gb/s without retiming. The transceiver provides digital diagnostic monitoring of supply voltage, temperature, transmit/receive power, and VCSEL bias. Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability. |
No options for this product
Every effort has been made to ensure the accuracy of all information contained herein. e-nitiative shall not be liable for any changes resulting in wrong product description, tax code and/or price. The shown information (specifications, prices, taxes) should be considered as an indication and can be changed at any moment and without any prior notice.
